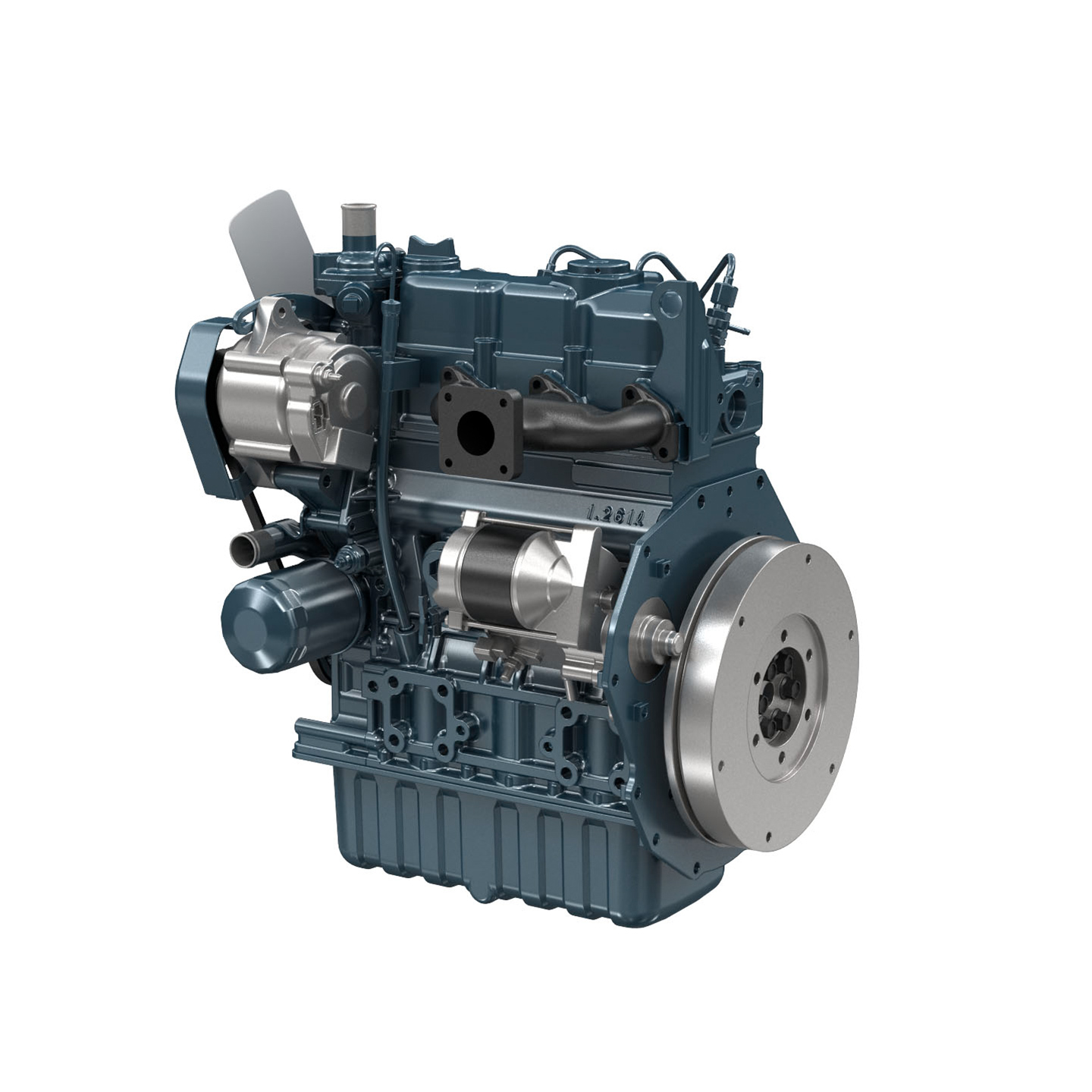

- Engine model
- D1305-E4B
- Emission regulation
- EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 3
- Bore and stroke
- mm (in)
- 78.0 x 88.0 (3.07 x 3.46)
- Displacement
- L (cu.in)
- 1.261 (76.95)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Rated output / speed*1
- kW (HP) / rpm
- 18.5 (24.8) / 2600
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 80.1 (59.1) / 1700
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 480 x 396 x 590 (18.9 x 15.6 x 23.2)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 95 (209)
