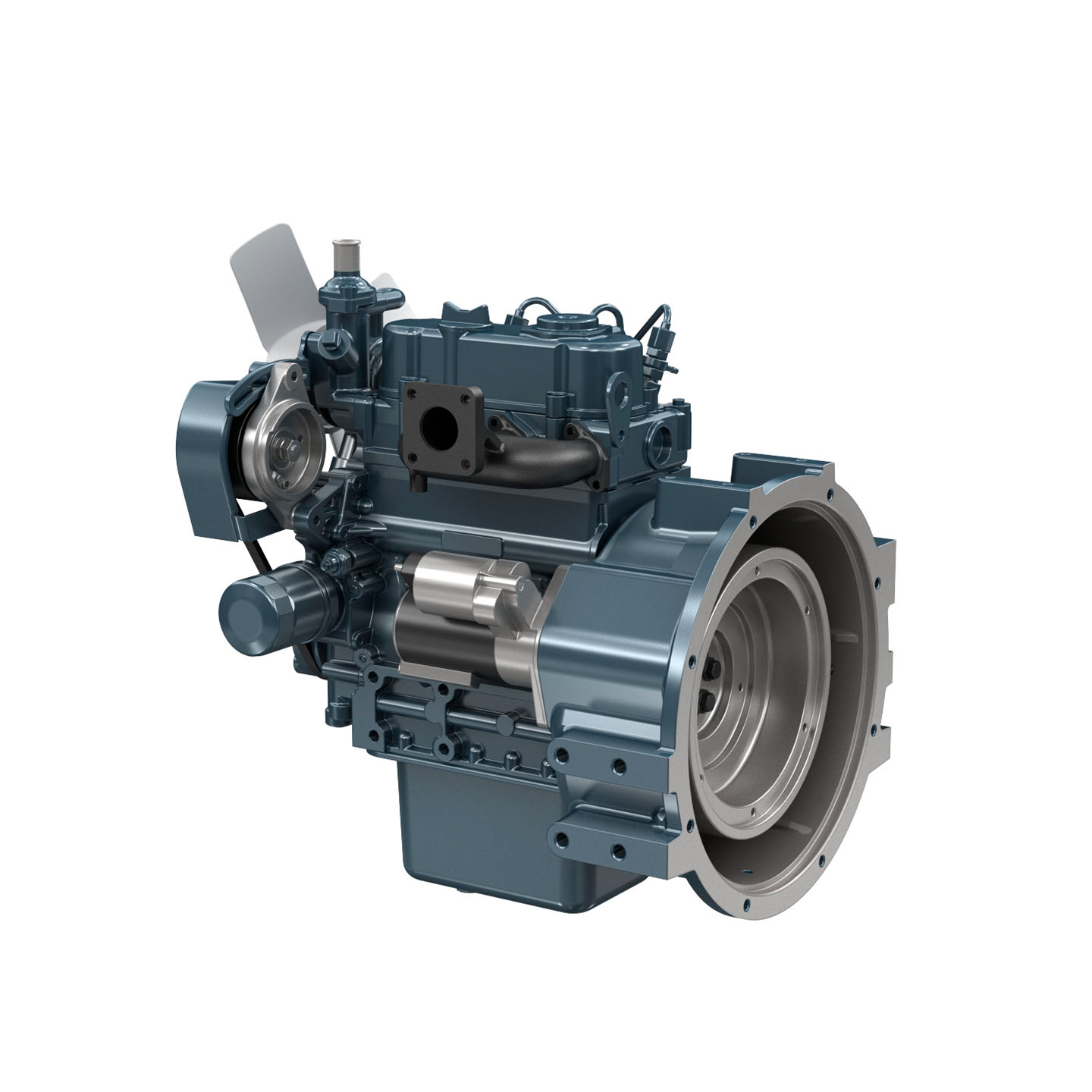

- Engine model
- D722-E3 (3000 rpm)
- Emission regulation
- EPA/CARB Tier 4 level + EU Stage V
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 3
- Bore and stroke
- mm (in)
- 67.0 x 68.0 (2.64 x 2.68)
- Displacement
- L (cu.in)
- 0.719 (43.88)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Stand-by output / speed*1
- kW (HP) / rpm
- 11.3 (15.1) / 3000
- Continuous output / speed*2
- kW (HP) / rpm
- 10.3 (13.8) / 3000
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*3
(without aftertreatment unit) - mm (in)
- 485 x 386 x 564 (19.1 x 15.2 x 22.2)
- Length x Width x Height*4
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 88 (194)
