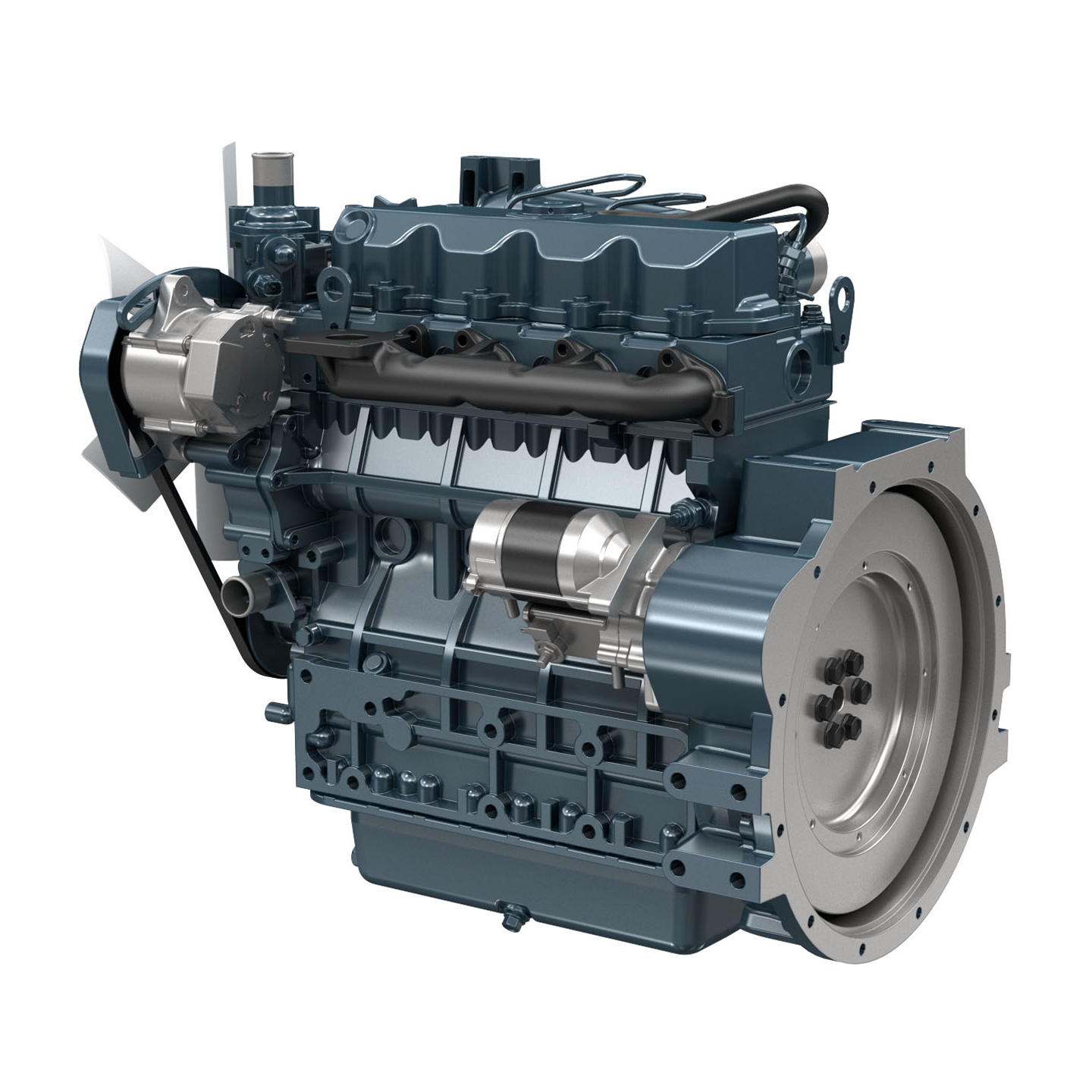

- Engine model
- V2003-M-E3-BG
- Emission regulation
- EPA/CARB interim Tier 4 level
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 83.0 x 92.4 (3.27 x 3.64)
- Displacement
- L (cu.in)
- 1.999 (122.0)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Stand-by output / speed*1
- kW (HP) / rpm
- 21.8 (29.2) / 1800
- Continuous output / speed*2
- kW (HP) / rpm
- 18.2 (24.4) / 1800
- Combustion system
- Indirect Injection
- Fuel system
- In-line pump
- Length x Width x Height*3
(without aftertreatment unit) - mm (in)
- 669 x 481 x 633 (26.3 x 18.9 x 24.9)
- Length x Width x Height*4
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 200 (441)
