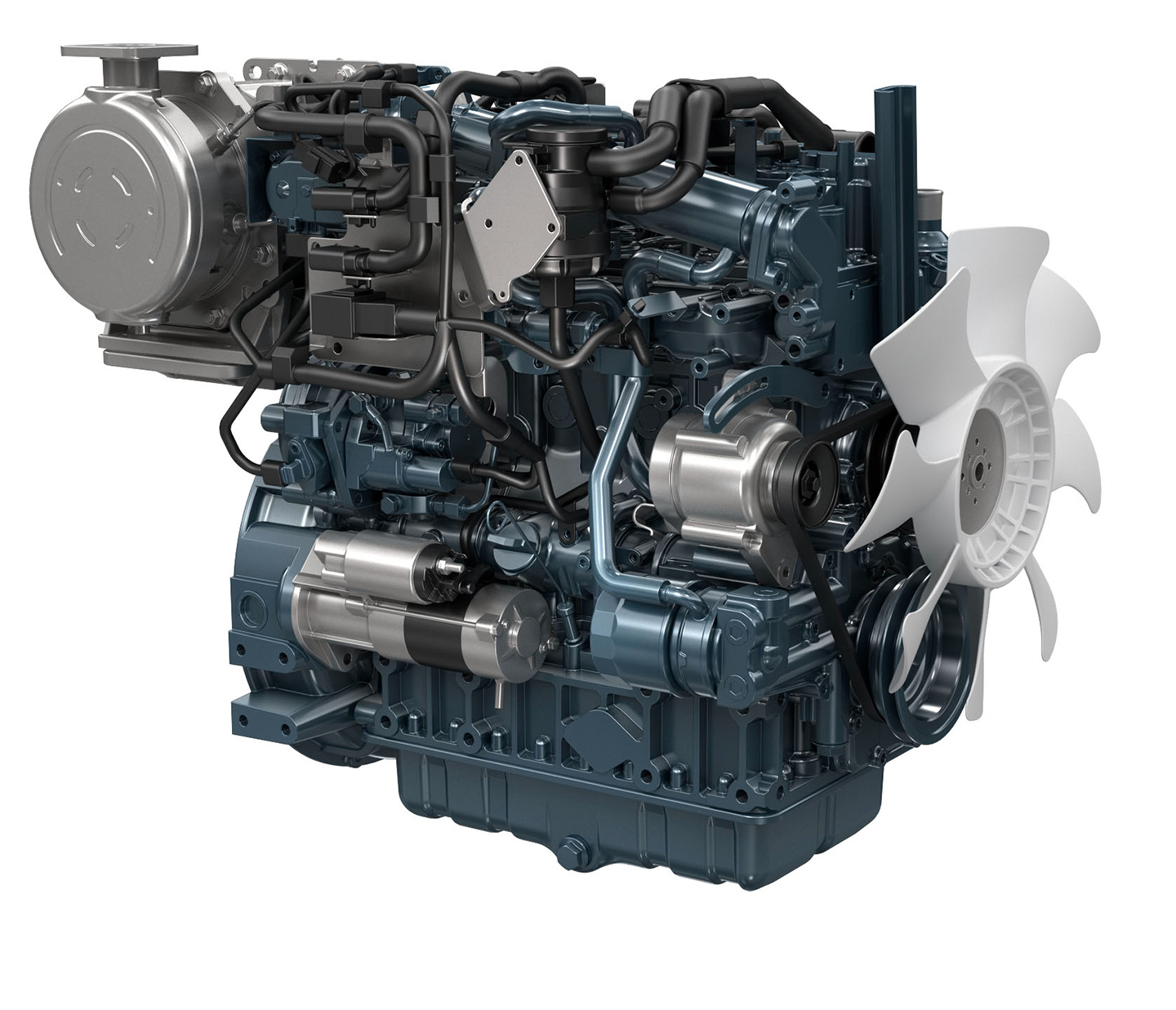

- Engine model
- V2607-CR-TI-E5
- Emission regulation
- EPA/CARB Tier4 + EU Stage V
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 87.0 x 110.0 (3.43 x 4.331)
- Displacement
- L (cu.in)
- 2.615 (159.6)
- Aspiration
- Turbocharged + Turbo After Cooler
- Aftertreatment
- DOC + DPF
- Rated output / speed*1
- kW (HP) / rpm
- 55.4 (74.3) / 2700
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 269.0 (198.4) / 1600
- Combustion system
- Direct Injection
- Fuel system
- Common rail system
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 623 x 522 x 699
(24.5 x 20.6 x 27.5)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- 833 x 522 x 723
(32.8 x 20.6 x 28.5)
- Dry weight
- kg (lb)
- 272 (600)
