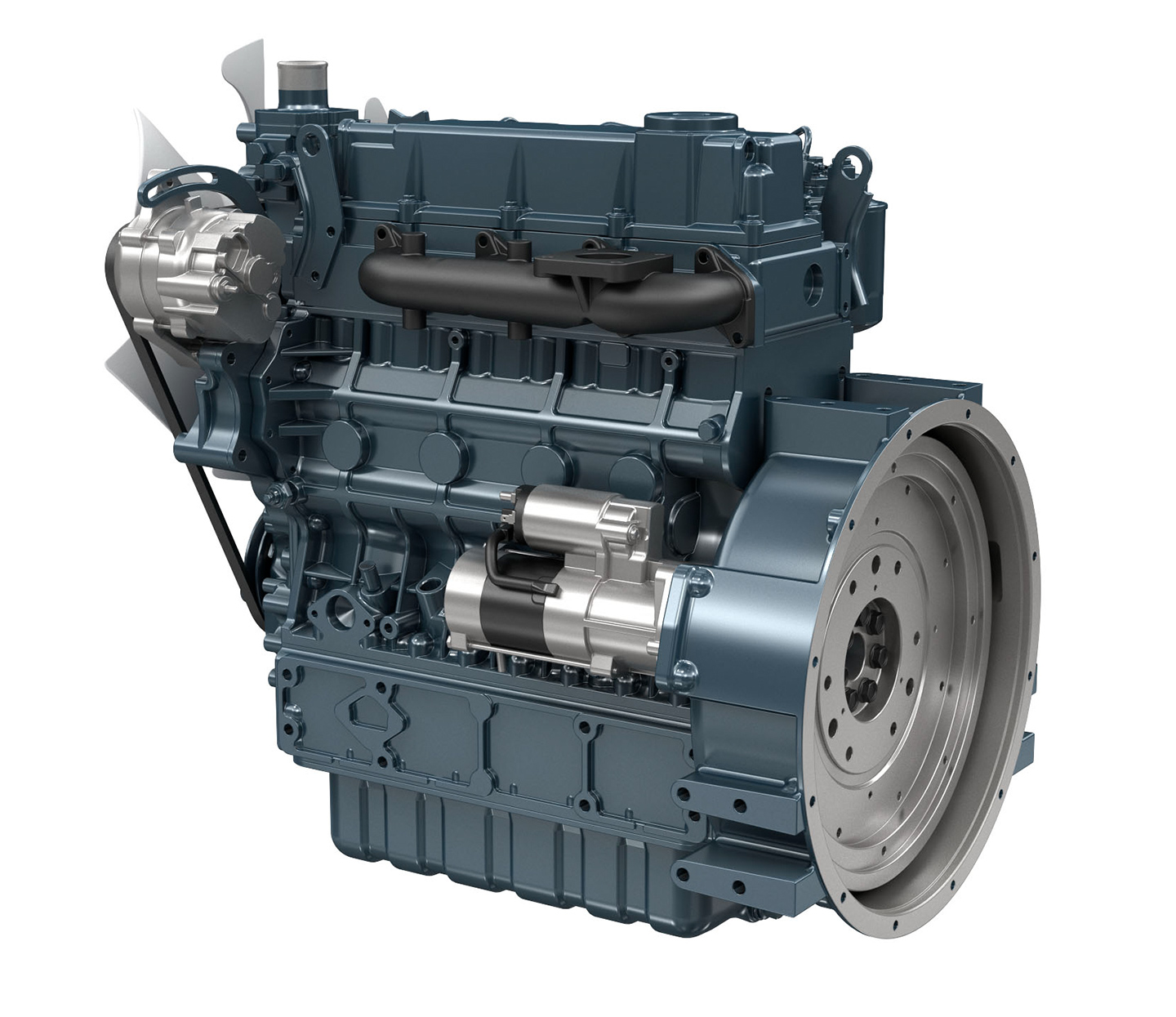

- Engine model
- V3300-E2-BG2
- Emission regulation
- EU Stage IIIA level
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 98.0 x 110.0 (3.86 x 4.331)
- Displacement
- L (cu.in)
- 3.318 (202.5)
- Aspiration
- Naturally aspirated
- Aftertreatment
- -
- Stand-by output / speed*1
- kW (HP) / rpm
- 28.9 (38.8) / 1500
- Continuous output / speed*2
- kW (HP) / rpm
- 26.3 (35.3) / 1500
- Combustion system
- Indirect injection
- Fuel system
- In-line pump
- Length x Width x Height*3
(without aftertreatment unit) - mm (in)
- 738 x 536 x 746 (29.1 x 21.1 x 29.4)
- Length x Width x Height*4
(with aftertreatment unit) - mm (in)
- -
- Dry weight
- kg (lb)
- 280 (617)
