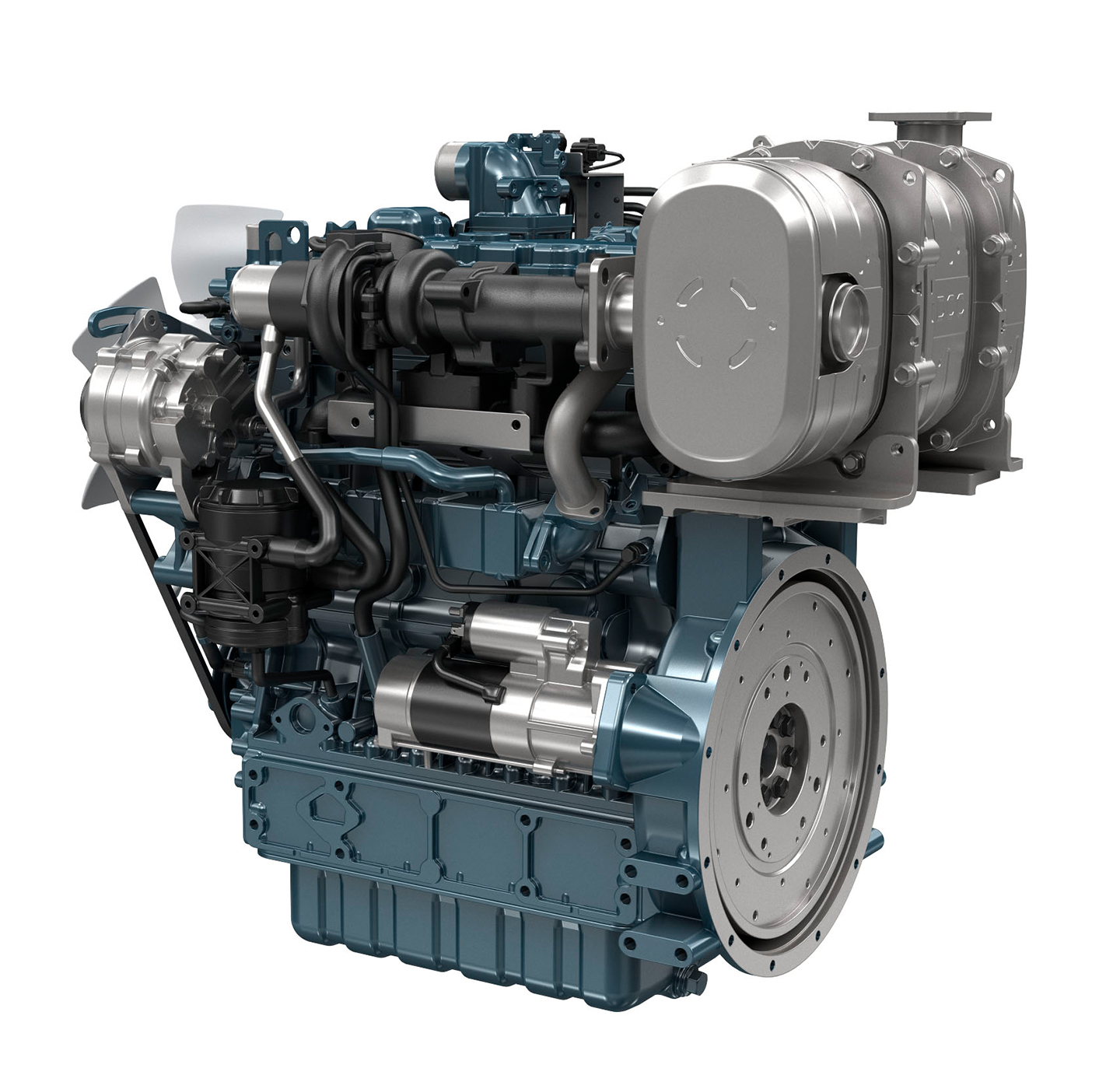

- Engine model
- V3800-TIE4B
- Emission regulation
- EPA/CARB Tier 4 + EU Stage IIIB
- Type
- Vertical, water cooled 4-cycle diesel engine
- Cylinders
- 4
- Bore and stroke
- mm (in)
- 100.0 x 120.0 (3.937 x 4.724)
- Displacement
- L (cu.in)
- 3.769 (230.0)
- Aspiration
- Turbocharged + Turbo After Cooler
- Aftertreatment
- DOC
- Rated output / speed*1
- kW (HP) / rpm
- 55.4 (74.3) / 2200
- Maximum torque / speed*1
- Nm (lb-ft) / rpm
- 310.0 (228.7) / 1500
- Combustion system
- Direct injection
- Fuel system
- Common rail system
- Length x Width x Height*2
(without aftertreatment unit) - mm (in)
- 699 x 617 x 837 (27.5 x 24.3 x 33.0)
- Length x Width x Height*3
(with aftertreatment unit) - mm (in)
- 845 x 617 x 852 (33.3 x 24.3 x 33.5)
- Dry weight
- kg (lb)
- 324 (714)
